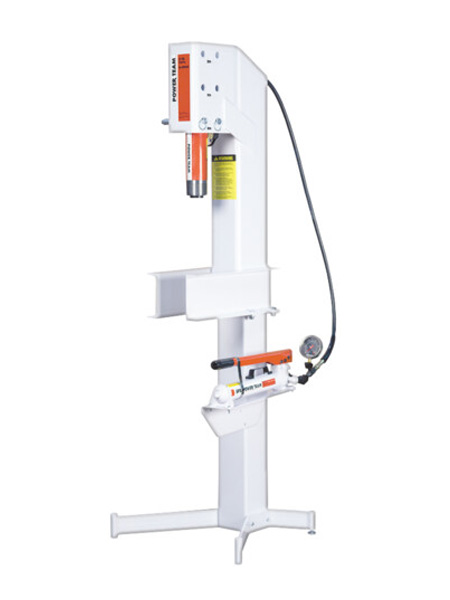

C-FRAME

C-Frame Presses (25T)

The Power Team C-Frame Press is available with a 25T capacity. The Open throat design makes loading and unloading work easy. Other features of the C-Frame Press include:

Can be bench mounted or on optional pedestal base.

Bench mount requires less than 1.5 sq. feet (1.4 sq. meter) of space; on optional pedestal, only 4 sq. feet (4 sq. meter) of floor space is needed.

The hydraulic cylinder delivers a 6.25" (159 mm) stroke and is driven by a P59 two-speed hand pump.

Cylinder head adjusts to three convenient working positions, providing up to 20.25" (514 mm)of “daylight.”

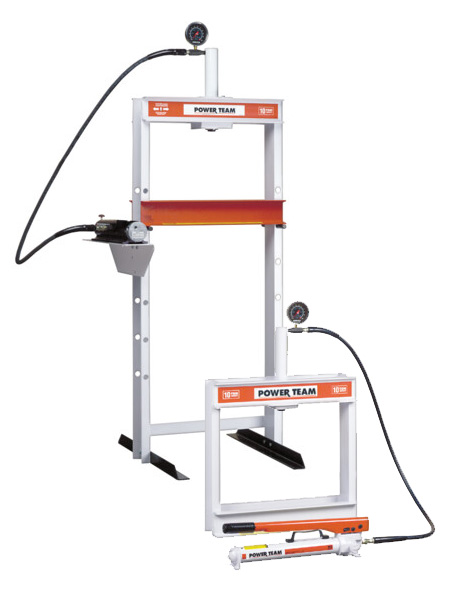

H-FRAME (10T)

H-Frame

The Power Team 10T H-Frame Press is ideal for small pressing jobs, repairing small motor armatures, removing and installing gears, bearings and other press-fit parts. Other features of the C-Frame Press include:

The bench version of the press has 15.38" x 16" work area.

The floor press has a bed height that is adjustable from 5" to 41" with horizontal "daylight" of 21“

Hydraulic gauges, hoses and fittings are included.

Choice of power sources for include: single-speed hand pump, air/hydraulic or electric/hydraulic pump.

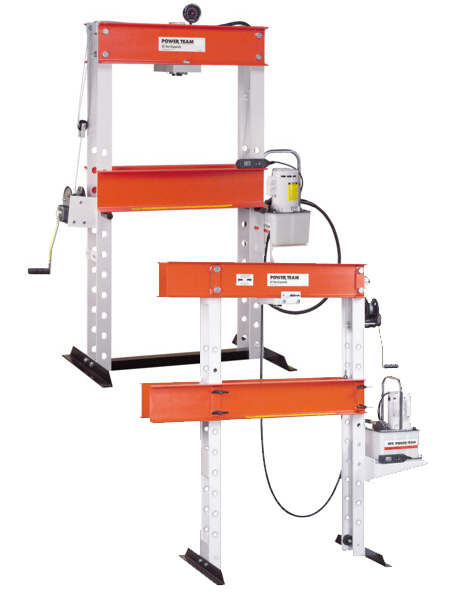

H-FRAME (25T)

H-Frame

The 25T Power Team H-Frame Press is available in two unique configurations:

Economy H-Frame Press

Handles many “big press” tasks and perfect for many of the “in-between” jobs you see almost daily.

Press bed height is adjustable with a winch. Bed will not drop when handle is released.

Choice of power sources for rapid cylinder advance: two-speed hand pump, air/hydraulic or electric/hydraulic pump.

Note: Stroke length limited to 6.25” (159mm) on Economy Models

Open-End-Access Press

The design allows for use as both an H-Frame and C-Frame press. The cylinder can be mounted on the frame extension for jobs that won’t fit between the uprights.

Open-End-Access models are available with a remote control to allow the operator to view work from all sides while controlling the cylinder position.

Off-center pressing loads of full capacity can be applied across the entire width of the frame.

Press bed height is adjustable with a winch. Bed will not drop when handle is released.

Choice of power sources for rapid cylinder advance: two-speed hand pump, air/hydraulic or electric/hydraulic pump

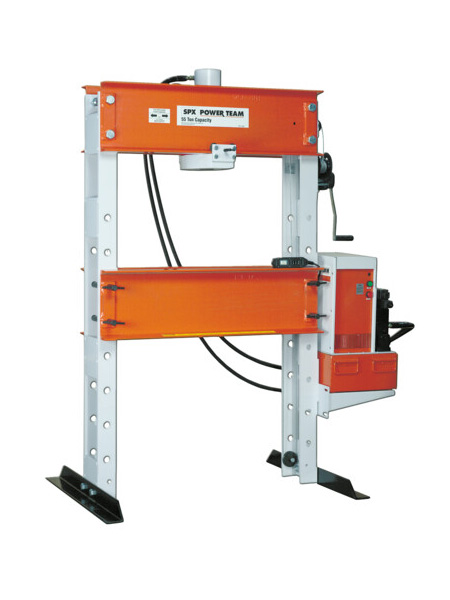

H-FRAME (55T)

H-Frame

The 55T Power Team H-Frame Presses support full off-center pressing at full rated capacity across width of upper frame without buckling or bending. Other features of the H-Frame Press include:

Maximum “daylight” is 42" x 36" (1,067 x 914 mm), making positioning of even bulky work pieces easy.

Height of press bed is easily adjusted with winch; friction brake prevents bed from dropping and handle from spinning upon release.

Presses with single-acting cylinder offer choice of 2-speed hand pump, electric/hydraulic, or air/hydraulic pump. Models with double-acting cylinder have an electric/hydraulic pump

Press models equipped with remote control enable operator to view work from all sides with fingertip control of cylinder piston travel.

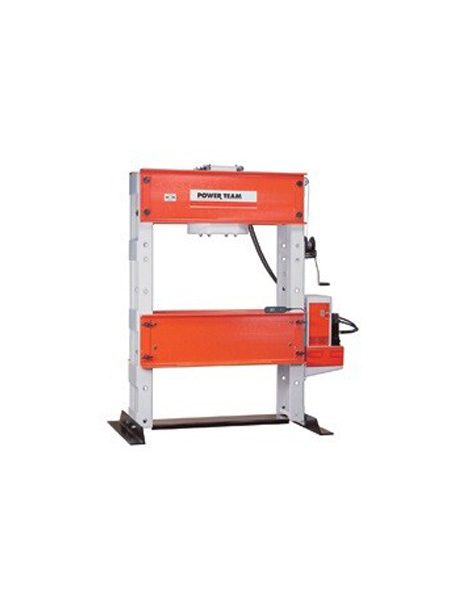

H-FRAME (100T)

H-Frame

The cylinder work-head of the 100T Power Team H-Frame Presses glides across upper frame on rollers, locks in place for off-center pressing jobs. Other features of the 100T H-Frame Press include:

May be used horizontally for special pressing applications with user-supplied supports.

Press bed is raised and lowered by winch which locks in place for insertion of bed retaining pins. Upper bolster can be lowered 8" (203 mm) for convenient positioning on repetitive jobs.

Generous "daylight" of 42" x 50" (1,067 x 1,270 mm) accommodates bulky work pieces, uprights are placed for easy side entry of bars or shafts for straightening or bending.

Choice of single or double-acting cylinder. Hydraulic pump options include: 2-speed hand pump with large 2-gallon (7.6 liter) reservoir, PE172 electric/hydraulic pump or "PQ" series "Quiet" electric/hydraulic pump with low noise.

H-FRAME (150 - 200T)

H-Frame

The cylinder work-head of the 100T Power Team H-Frame Presses glides across upper frame on rollers, locks in place for off-center pressing jobs. Other features of the 100T H-Frame Press include:

May be used horizontally for special pressing applications with user-supplied supports.

Work head has wide horizontal travel; rugged press frame withstands load of rated capacity across full width of frame.

Winch mechanism provides easy positioning of press bed, locks in place for insertion of retaining pins.

Upper bolster can be lowered 11" (279 mm) for convenient positioning on repetitive jobs.

Uprights are placed for easy side entry of bars or shafts for straightening or bending.

Fast cylinder approach is provided by PQ1204S “Quiet” electric/hydraulic pump.

Remote control hand switch, enabling operator to view work from all sides with fingertip control of cylinder piston travel.

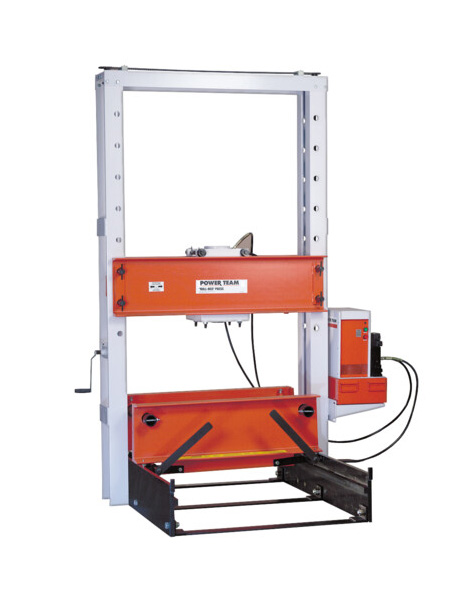

ROLL-BED

Roll-Bed Presses (80 - 200T)

The original, patented Roll-Bed® design where the bed rolls out for easy loading and unloading with a crane or other lifting device, supporting loads up to 3,000 lbs (1361 kg). The Roll-Bed Presses are available in 4 different capacities. Other features include:

Moveable work-head glides easily side-to-side for full off-center load capacity across the width of the upper frame.

“Daylight” is 50.5" x 60" (1,283 x 1,524 mm) for 80 and 100-ton models; 51.25" x 64" (1,302 x 1,625 mm) on 150 and 200-ton presses.

Fast approach of double-acting, 13 1/8" (334 mm) stroke cylinder is provided by PQ1204S “Quiet” electric/hydraulic pump with remote control hand switch. Operator can view work from all sides with fingertip control of cylinder piston travel.

Adjustable lower bed width for secure balancing and centering of heavy jobs.

Lifting mechanism has a turn crank handle to raise or lower upper bolster. Screw mechanism raises or lowers both sides evenly (a heavy-duty 1/2" drill motor can replace handle for automatic adjustment). Four locking pins hold bolster in place for pressing.

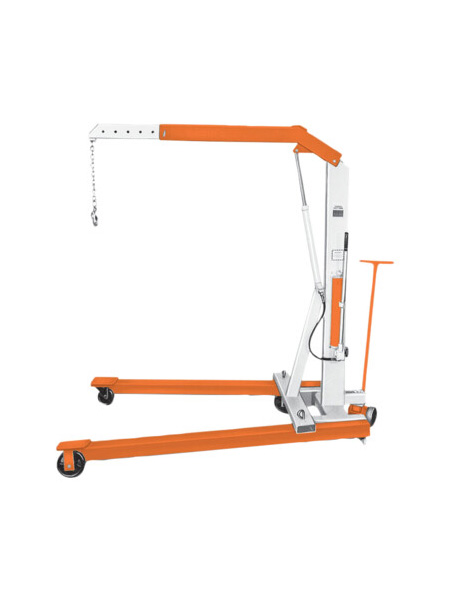

FLOOR CRANES

Floor Cranes

Adjustable legs spread to clear obstacles (telescoping boom for extra reach)

Rugged construction, reliable hydraulics.

Boom collapses completely and legs fold for compact space-saving fold-away storage

2-speed hydraulic hand pump provides fast boom travel and precise operator controlled descent.

Roller bearing wheels and a steering dolly provide ease of mobility. Lifting chain is included.

U.S. Patent No. 3,367,512

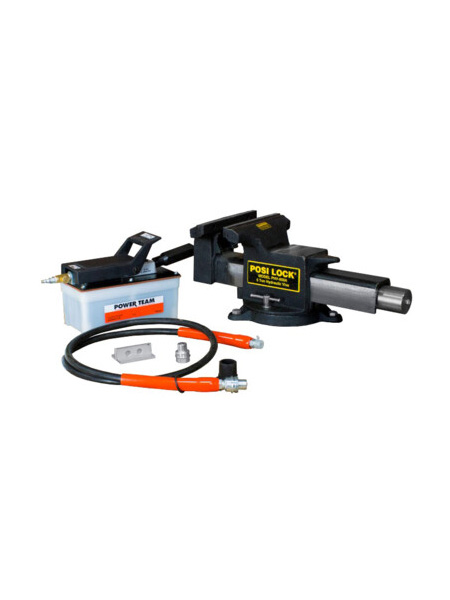

HYDRAULIC VISE

The Posi Lock hands-free hydraulic bench vise provides 5 Tons of clamping force, plus an air control valve for variable speed and safety. Operated by a 10,000 PSI (690 bar) foot pump this vise allows you to have two free hands for your project. This vise can easily help complete repetitive, heavy, oversized, awkward or multi-piece jobs. The Hydraulic Bench vise boasts 52,600 PSI (xxx bar) tensile strength, cast steel construction and operates in both vertical and horizontal positions. The jaws open up to 8 inches (203 mm).

Note: An air supply is required when using a hydraulic pump (90-120 PSI / xxx bar] recommended). Vise may be used with other 10,000 PSI (690 bar) hydraulic pumps.
